Legacy Authentication

How attackers are bypassing MFA in Azure AD

March 2022
Curtis Middlehurst - Click to Follow!

When looking into sign-in logs from Azure AD, you might have come across the user-agent ‘BAV2ROPC’. Whilst it is possible that some accounts would legitimately be signing in with this user-agent, what you could be seeing is a successful password spray that has bypassed MFA.

So what is BAV2ROPC?

BAV2ROPC Can be broken down into two parts, BAV2 = Business Apps V2, which includes older versions of mail apps that use legacy protocols such as IMAP, SMTP or POP3, and ROPC = Resource Owner Password Credential, a password flow in which the application handles a user's password.

Legacy protocols are unable to enforce a MFA requirement. This means that when an older mail app using legacy authentication methods is handling the credentials an attacker can effectively bypass MFA.

This tactic is commonly used in password spraying attacks, highlighted by Microsoft in this blog post: Microsoft Security Blog. The Microsoft blog also points to "CBAinTAR" and "CBAinPROD" as user-agents that are associated with legacy authentication.

Detection using Azure Sentinel

The first step when making detection rules for this is to baseline current usage of legacy authentication in your estate, it is possible that legacy authentication is being used by accounts performing automated tasks, find these accounts and add them to a Watchlist.

You can detect logins with a simple rule, all we need to look for is sign-in activity from accounts not in our watchlist with BAV2ROPC, CBAinTAR or CBAinPROD as the user-agent.

Kusto Query Language Example:

|where UserPrincipleName !in~(_GetWatchlist(‘knownlegacyaccounts’ | project SearchKey)) and UserAgent in~ ("BAV2ROPC", "CBAinTAR" , "CBAinPROD")


Note: If your organization has security defaults enabled in Azure AD, legacy authentication will automatically be blocked.

Since this attack is able to bypass MFA, the most painless method of prevention is to use Conditional Access policies in Azure AD by doing the following:

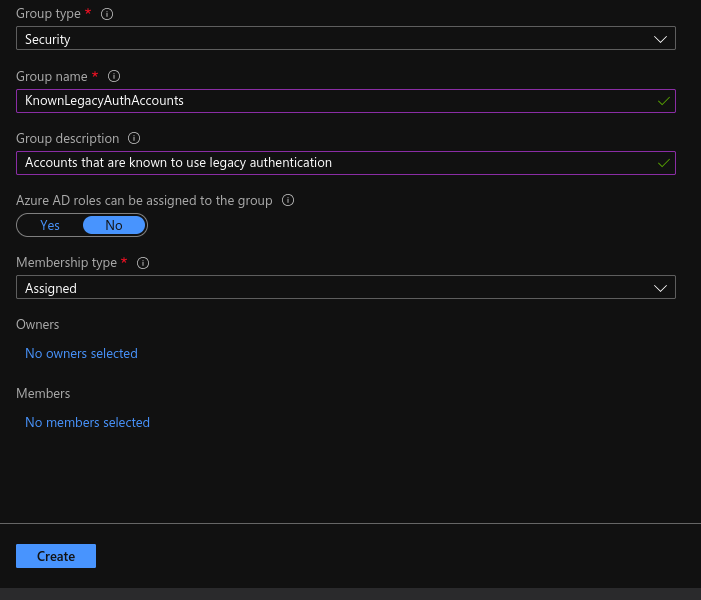

Create a group for all the accounts identified in baselining.

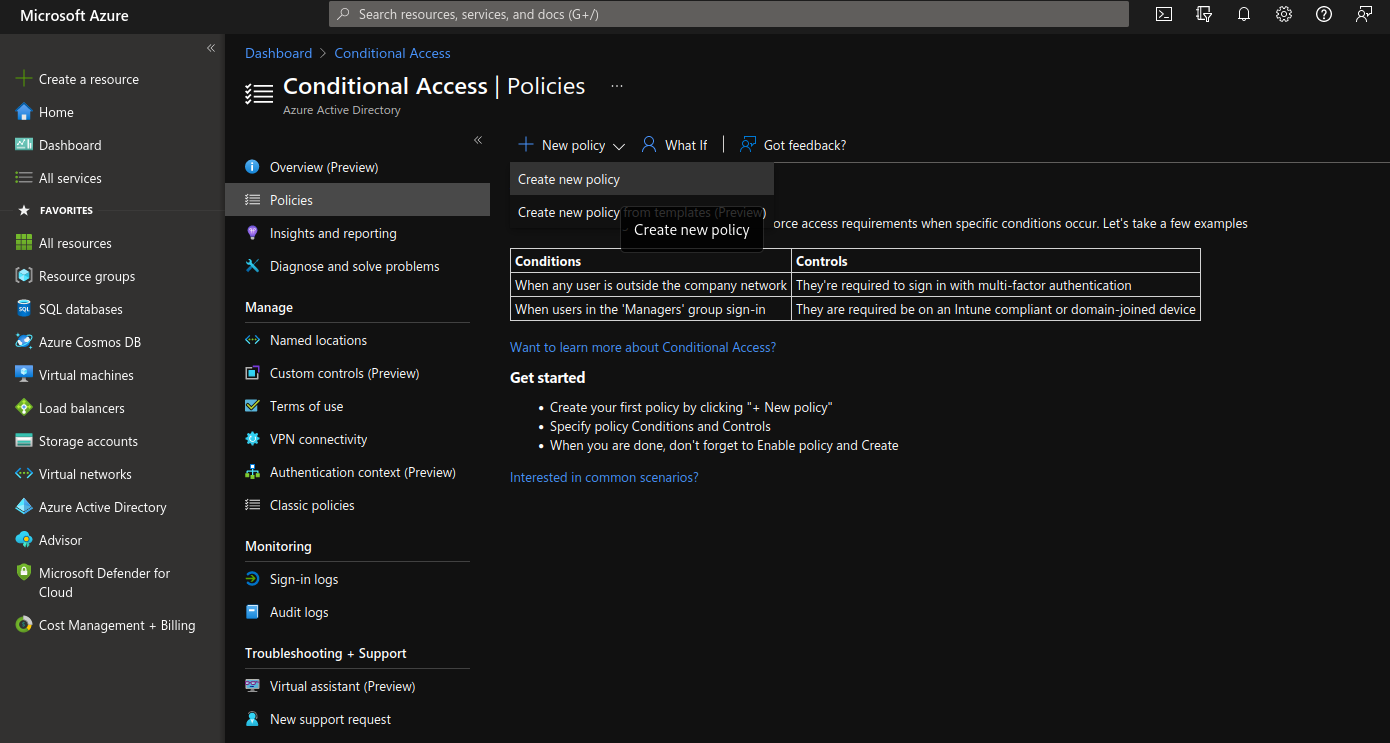

Create a conditional access policy in Azure AD, exclude the newly created group.

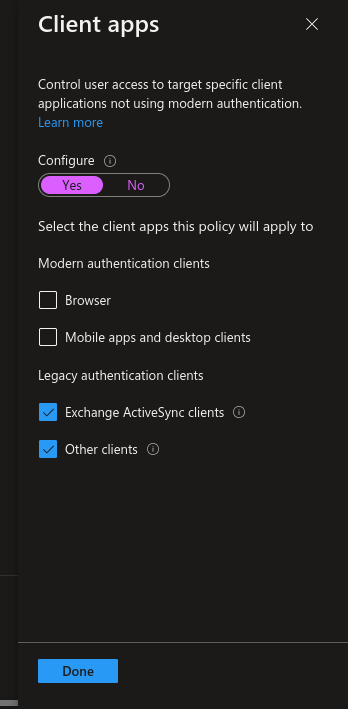

In Conditions, configure Client Apps and select both legacy authentication clients option.

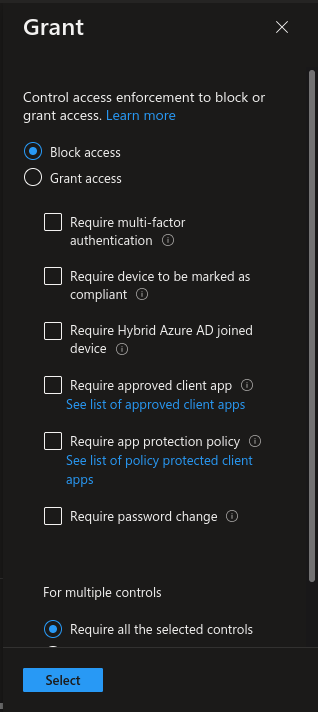

In Grant, choose Block Access.

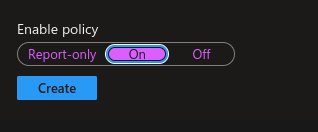

In Enable Policy, select 'On'.

Once this conditional access policy in place, unexpected accounts will not be able to log in using legacy authentication methods.
